CP024 AC/DC Current Probe
+ 4A to 400A test range
+ Error by earth magnetic: ± 30mA max
+ Remanence (士100A/10A):± 30mA max
+ Bandwidth: DC 200KHz (±3dB)

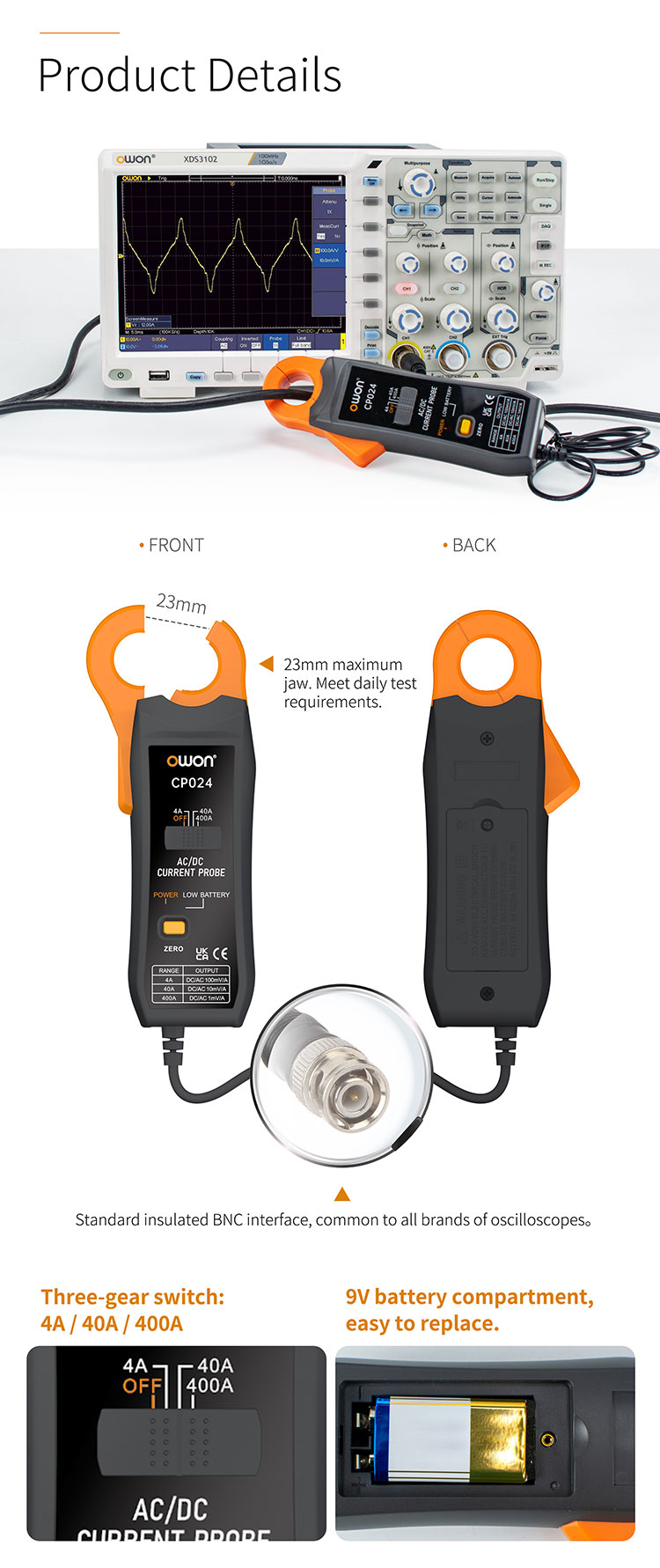

+ Jaw size: 23mm (Max)
+ Auto Zero at power on
+ Low battery indication
Send Inquiry
+ Error by earth magnetic: ± 30mA max
+ Remanence (士100A/10A):± 30mA max
+ Bandwidth: DC 200KHz (±3dB)
+ Jaw size: 23mm (Max)
+ Auto Zero at power on
+ Low battery indication
E-mail UsProduct Details
Specifications
DC Current
|
Range |
Sensitivity |
Accuracy |
|---|---|---|
|
DC 4A |
1 mV/10 mA |
±(1.5%rdg±5d) |
|
DC 40A |
1 mV/ 0.1A |
±(1.5%rdg±5d) |
|
DC 300A |
1 mV/ 1A |
±(1.5%rdg±5d) |
|
DC 300 - 400A |
1 mV/ 1A |
±(3.5%rdg±5d) |
AC Current
|
Range |
Sensitivity |
Accuracy |
|---|---|---|
|
AC 4A |
1 mV/ 10mA |
±(2.0%rdg±5d) |
|
AC 40A |
1 mV/ 0.1A |
±(2.0%rdg±5d) |
|
AC 300A |
1 mV/ 1A |
±(2.0%rdg±5d) |
|
AC 300A - 400A |
1 mV/ 1A |
±(3.5%rdg±5d) |
General Specifications
|
Power supply |
9V (6LR61) Battery (optional) |
|
|
Dimension(W*H*D) |
180 x 68 x 32 (mm) |
|
|
Device Weight |
About 250 g |
|
|
Operating Temperature |
0℃ to 50℃，≤70%RH |
|
Support

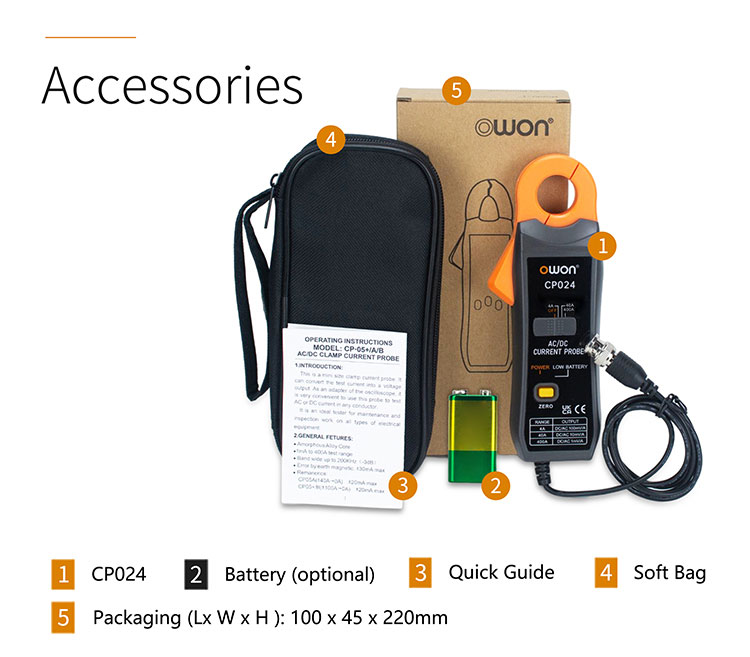

Accessories
The accessories subject to final delivery.
-
Quick Guide -
Soft Bag -
9V battery (optional)
